ACCESSORI - Redance, false maglie, argani a fune passante

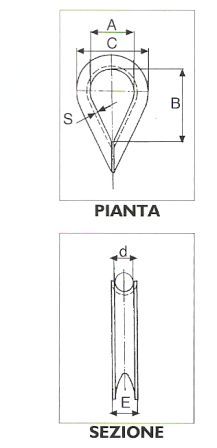

Redance zincate
L.C.P. Funi S.r.l. - Redance
Diametro fune
mm.		 A
mm.		 B
mm.		 C
mm.		 E
mm.		 s
mm.		 Peso
g.
3 9 16 16 4,2 0,6 2,3
4 11 19 18 5,4 0,7 3,0
5 14 24 22 6,6 0,8 5,0
6 17 28 26 8,0 1,0 8,0
8 19 33 30 10,4 1,2 15,0
10 21 38 34 13,0 1,5 23,0
12 30 44 46 15,6 1,8 44,0
14 33 49 50 18,0 2,0 61,0
16 40 52 59 20,5 2,0 78,0
18 46 68 69 23,0 2,5 135,0
20 51 78 77 26,0 3,0 215,0
22 56 88 84 28,0 3,0 225,0
24 60 92 91 32,0 3,5 330,0
26 60 92 91 32,0 3,5 330,0
28 75 109 115 36,0 4,0 575,0

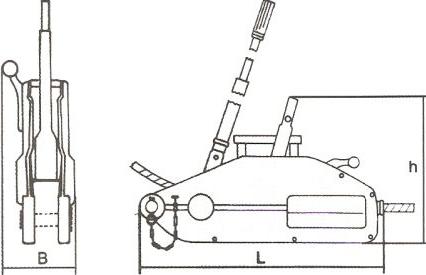

Argano a fune passante
Portata
Kg.		 L
mm.		 B
mm.		 h
mm.
800 428 64 235
1600 540 97 286
3200 660 110 350
L.C.P. Funi S.r.l. - Redance
